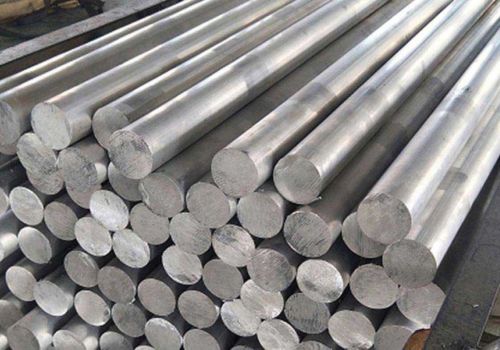

Jacob Aluminium is a reputable manufacturer and supplier of Aluminium 5083 Bars in Midlands, UK. Renowned for their high strength, excellent corrosion resistance, and exceptional weldability, Aluminium 5083 Bars are designed to meet the demands of marine, automotive, and industrial applications. These bars offer outstanding durability and resistance to seawater corrosion, making them ideal for use in boat hulls, offshore structures, fuel tanks, and other critical components exposed to harsh environments. We maintain rigorous quality standards to deliver reliable products that meet customer expectations. Our commitment to precision and customer satisfaction ensures that clients can trust us for all their Aluminium 5083 Bars needs.
Aluminium DIN 3.3547 Bars are composed of Aluminium (90-91%), Magnesium (4.0-4.9%), Manganese (0.4-1.0%), Iron (0.7%), Silicon (0.4%), Zinc (0.25%), and Copper (0.2%). This composition provides excellent corrosion resistance, particularly in marine environments, high strength, and outstanding weldability. The mechanical properties include a tensile strength of 310-320 MPa, a yield strength of 150-180 MPa, and an elongation of 12-16% depending on the temper. With a Brinell hardness of 75-95 HB, Aluminium 5083 Bars are well-suited for demanding applications such as marine, automotive, aerospace, and structural components where durability and resistance to corrosion are critical.
| Bar Wire Standard | ASTM B221, B211, B565, B316, AMS 4121 2014 |
| Bar Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Round bar size | Diameter: 3-~800mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Rectangular Size | 33 x 30mm to 295 x 1066mm |
| Bars Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Bar Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Tempers | Tempers range from dead soft annealed to ultra spring temper |
| Rolled Flat Bars Condition | Hardened & tempered, annealed |
| Cold Rolled Bar Technique | Aluminium Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Rounds Bar Form | Round, Rod, T-Bar, Channel Bar, Precision Ground Bar, Flat Bar, Square, Blocks, Round Rod, Rings, Hollow, Triangle, Rectangle, Hex (A/F), Threaded, Half Round Bar, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Grade | Fe | Si | Mg | Mn | Cu | Zn | Cr | Ti |
| Aluminium 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.05 / 0.25 | 0.15 max |
| Grade | Tensile Strength | Hardness Brinell | Elongation |
| Aluminium 5083 | 275 – 350 MPa | 75 HB | 12 Min % |
| STANDARD | WERKSTOFF NR. | ISO | Din | UNS |
| Aluminium 5083 | 3.3547 | AlMg4,5Mn0,7 | AlMg4,5Mn | A95083 |
Jacob Aluminium based in Midland, UK is a renowned manufacturer and supplier of premium aluminium products, including Aluminium Bars, Sheets and Plates, Coils, Chequered Plates, Wires, Pipes, Fittings, Flanges, Forging, Circle, Angles. With a commitment to delivering exceptional quality and service, we cater to diverse industries, offering reliable solutions tailored to specific requirements. Our products are known for their superior strength, corrosion resistance, and precise dimensions. We focus on customer satisfaction by providing an extensive range of aluminium bars designed for structural, industrial, and decorative applications.
Yes, we offer custom sizes for Aluminium 5083 Bars to meet specific project needs. Our team at Jacob Aluminium is committed to providing customized solutions for all your requirements. For more details, contact us at sales@bassamaluminium.com
UNS A95083 Bars are highly valued for their high strength, exceptional corrosion resistance, and excellent weldability. They are extensively used in marine applications, such as boat hulls, decks, and offshore platforms, where they are exposed to saltwater and harsh environmental conditions. In the automotive sector, they are utilized for fuel tanks, body panels, and chassis parts due to their durability and lightweight properties. Aluminium 5083 Bars are also employed in aerospace applications for aircraft structures, fuel lines, and various critical components that require robust performance and corrosion resistance. Additionally, they find use in chemical processing equipment, pressure vessels, and storage tanks that need to withstand harsh environments.
